Capacitor and Capacitance

Capacitor in a DC circuit

A capacitor stores its energy on its plates. There is no direct electrical connection between the plates, so current does not flow through a capacitor in the traditional concept of flowing. In the illustration there is a positively and a negatively charged plate, separated by a dielectric spacer. The plates have the ability to store a charge similar to a battery but the capacitor can not generate a change by itself. It is basically a Charge Storage Tank. It has a zero-sum charge which means that if it builds a positive charge (8 units) on one plate, it needs to maintain the exact opposite negative charge (8 units) on its other plate.

Capacitor

The Charge Cycle: Here is how a capacitor works. Starting with the circuit illustrated here, we have a 9 volt battery, two resistors, a switch and a discharged capacitor.
When the switch is flipped up, current starts to flows. Negative charges from the battery start building on the C1 lower plate and the same number of electrons flow off the C1 upper plate through R1 and into the positive battery terminal.
At first there exists a larger voltage drop across R1 thus more current flowing because C1 was sitting at 0 volts in charge.
C1 starts smoothly building a charge and the R1 voltage drops smoothly, until at some point in time C1 will be charged to 1 V, then 2 V’s and so on until it is fully charged to 9 volts.
As C1 charges and its voltage ramps up, there becomes less of a differential voltage across R1. Ohms Law tells us that with less voltage drop across R1, less current is flowing through R1 thus the charge rate of C1 steadily slows down. At some point in time C1 is fully charged to 9V and no more current flows across R1.

At any time in this cycle, when the switch is placed in its center position, the circuit is opened and, C1 will remain at that charge level for a very long time.

The Discharge Cycle: When the switch is flipped to the lower position, and if the capacitor was full charged, current flows in the reverse direction, out of the lower plate of C1, through the R2 - R1 series circuit until C1 is fully discharges. Here again, faster while C1 has 9 V’s and steadily declining current flow until C1 is fully discharged.

Capacitors are made with a specific capacitance and this is measured in Farads, in honor of the English chemist and physicist Michael Faraday. A farad is a large value, so often the term microfarad is used to represent one-millionth of a fared. This term is generally written using the letter “U” as uF, or with the Greek letter as µF. It is also common to see the terms nanofarads written nF, and picofarads written pF.

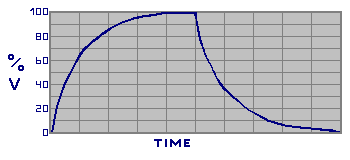

Cap RC Time RC Time Constant: The rate of this charge and discharge is known as the RC Time Constant. Because more current flows at the start and less flows as time goes on, the level of the voltage applied to the capacitor charging rate is not linear. It is considered to take 5-time constants to fully charge, or discharge a capacitor. At time constant 1, about 63% of the capacitor charge is filled, leaving 37% remainder charge to go. At time constant 2, about 63% of that remainder amount is charged, thus placing a total charge at about 86.5% leaving about 13.5% remaining to charge. And so on, until the capacitor is fully charged.

Capacitors In Series

P-N Junction When capacitors are in wired series in a circuit, the current will flow, charging the capacitors in accordance to the capacity values of the capacitors. The smaller valued capacitor in the series will have the most impact over the total charge. This is because its storage capacity is less, causing the larger component to not be able to be fully charges. Look at the formulas to see this relationship.
 Here is the formula for calculating the
 total for capacitors in series.
 P-N Junction

 C-equivalent= 1 / ((1/C1) + (1/C2) + (1/Cn))


 Given: two series capacitors
 P-N Junction
   with values of 1F each
   C-equivalent=   1 / ((1/1F)+(1/1F)) = 0.5F


 Given: two series capacitors
 P-N Junction
   values of 1F and 0.01 F
   C-equivalent= 1 / ((1/1)+(1/0.01)) = 0.0099F



 Given: 4 series capacitors
 P-N Junction
   values of 1F, 0.25F. 0.05F, and 0.003F

   C-equiv = 1 / ((1/1)+(1/0.25)+(1/0.05)+(1/0.003))

   C-equiv = 1 / ( 1 + 4 + 20 + 333)

   C-equiv = 1 / 358

   C-equivalent= 0.00279F

Capacitors In Parallel

P-N Junction When capacitors are placed in parallel in a circuit the equivalent capacitance is the sum of the parallel capacitors added together.
Here is the formula for calculating total for capacitors in parallel.
 C-equivalent=    C1 +  C2

 Given: two parallel two capacitors, each 1F
        C-equivalent=    1F +  1F = 2F

 Given: two parallel capacitors, values of 1F and 0.01F
        C-equivalent=    1F +  0.01F = 1.01F

RC Time Constant

Both the capacitor and the resistor impact the charge rate.
 1) Increasing the resistor value, reduces the current flow, and
    extends the charge time.
 2) Increasing the capacitor increases the capacity (area to fill)
    and extends the charge time.
 3) Doubling the resistance value while reducing the capacitor value by
    half will have no effect on the charge time.
 4) the formula is: T = R x C
    where T is the Time and is in seconds
          R is the Resistance in Ohms
          C is the Capacity in Farads
 5) takes 5 TC to charge or discharge a capacitor

 Question 1:
 Find one TC with Given: 1 M resistor and a 1 µF capacitor?
  Answer:  1,000,000 x (1/1,000,000)  or 1 second

 Question 2:
 Find one TC with Given: 270 k resistor a 0.1 µF capacitor?
           TC = 270000 x 0.0000001  gives 0.027 seconds


Capacitive Reactance (XC)

The Capacitive Reactance is equivalent to the AC resistance of the capacitor. The faster the frequency the less the resistance to the change. In AC circuits, capacitors act a bit different then do most other components. When the circuit voltage is raising above capacitor voltage the capacitor tends to take on and store the higher voltage.
When the circuit voltage is lower then the stored charge in the capacitor the capacitor starts dumps its charge back into the circuit.
The capacitor has limited space on its plate to store electrons so once the plate area is charged to the circuit voltage the capacitor can not add to its storage so the effectively the current will stop flowing in the capacitor.
 Capacitive Reactance formula is XC = 1/ (2 Π  f C)
       [1 divided by the sum of (2 Π  f C)]
     Where - XC is the AC resistance to current flow
           2 Π is a constant of 2(3.14159)
           f is the frequency of the voltage in Hz
           C is the capacitance in Farads


 Here are a few examples.
 Given: C is 100uf  at 1kHz.
  Answer: XC = 1/((2)(3.14159)(1000)(0.0001)) or 15.9 Ohms

 Given: C is 100uf  at 10M Hz.
 Answer: XC = 1/((2)(3.14159)(10000000)(0.0001)) or 0.000159 Ohms

 Given: C is 0.1f at 10Hz
 Answer: XC = 1/((2)(3.14159)(10)(0.1))  or 1 / 6.28318  or  0.159 Ohms
